Chrysler Repair: pacifica 2007, gear switch, range indicator
Question

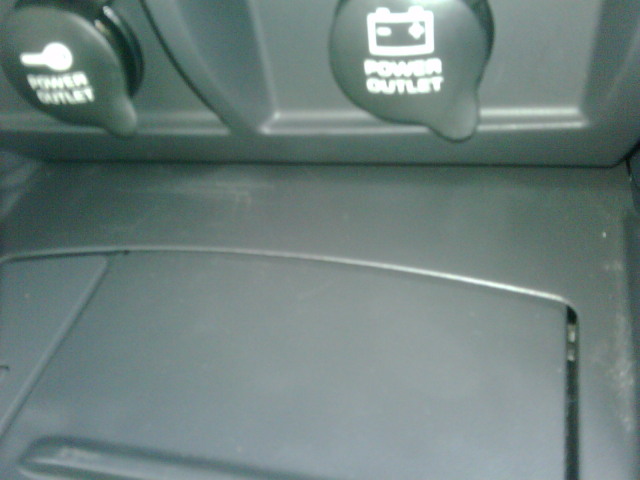

Opening above ashtray
Hi
I have one single CD the slipped inside the a very narrows opening between the the console with the radio, dvd and all other controls and the gear switch console. I can see the CD but can't get to it. Is there a way to remove the cover the covers the gear switch(AT transmission) without taking apart the top console with radio and all the other staff? Thank you.
Answer
REMOVAL
1. Remove shift bezel. (Refer to 23 - Body/Interior/BEZEL, Shifter - Removal) .
2. Remove transmission range indicator surround bezel.
3. Remove two screws attaching front floor console to the lower instrument panel.
4. Open cup holder and remove two attaching screws to bottom of cup holder.
5. Open bin and remove two attaching screws to bottom of bin.
6. Remove front floor console sidewall attaching screws, three per side.
7. Raise front floor console and disconnect wiring harness.
8. Remove front floor console from vehicle.
REMOVAL
1. Remove gear shift knob.
2. Using a Trim Stick C-4755 or equivalent, disengage the locking tabs and remove gear shift bezel.
3. Raise gear shift bezel and disconnect wire connector.
4. Remove gear shift bezel from vehicle.
