Nissan Repair: Sentra 97 model gxi 1.6

Question
Torque settings for cylinder head and timing

Answer

Nissan   Hi Lionel -

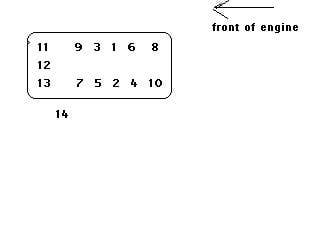

Here are your torque settings and instructions, along with the bolt diagram.
Timing should be set at 10 degrees BTDC

Cylinder head bolts
Stage 1: 29.4 Nm (3.0 kg-m, 22 ft. lbs.)
Stage 2: 58.8 Nm (6.0 kg-m, 43 ft. lbs.)
Stage 3: 0 Nm (0 kg-m, 0 ft. lbs.) (loosen)
Stage 4: 27.4 - 31.4 Nm (2.8 - 3.2 kg-m, 21 - 23 ft. lbs.) Stage 5: 50°- 55°(target 50°) clockwise


Tighten cylinder auxiliary bolts (11) to (14) in numerical order shown in figure.

Verify shank length under bolt head. [Bolt 11: 20 mm (0.79 inch), bolts 12 -14: 25 mm (0.98 inch)]


Hope this helps -
aloha
Calvin
