Small Engines (Lawn Mowers, etc.): looking for lawnmower parts

Question

noma brute

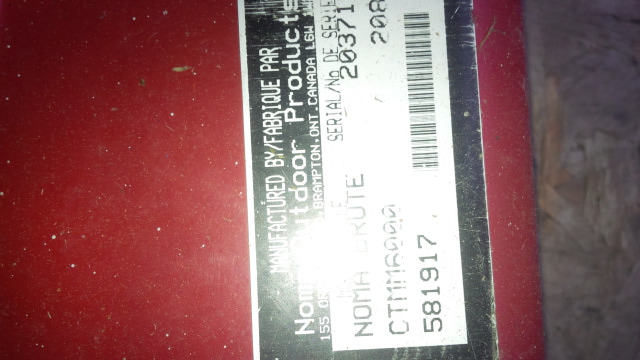

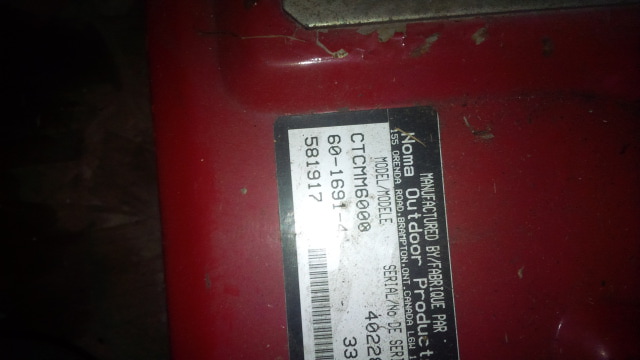

noma brute   Hi, I have two noma brute push lawn mower model# ctmm6000 and ctcmm6000, I am having such a hard time finding a replacement blade bolt and blade support. Could you please help me!! I'm attaching both of the mowers model number stickers.

Answer
Did you Google "Murray blade adapter"?

The bolt should be a 3/8 inch bolt, fine thread 24 threads per inch...common 3/8-24 NF grade 8 bolt...you will just have to measure the length.

Some of those mowers used several large flat washer to secure the blade.

As for blade adapters, you need to measure the crankshaft diameter and determine what key way system you need.

Search Google Images for Murray blade adapters.

Eric
