Question

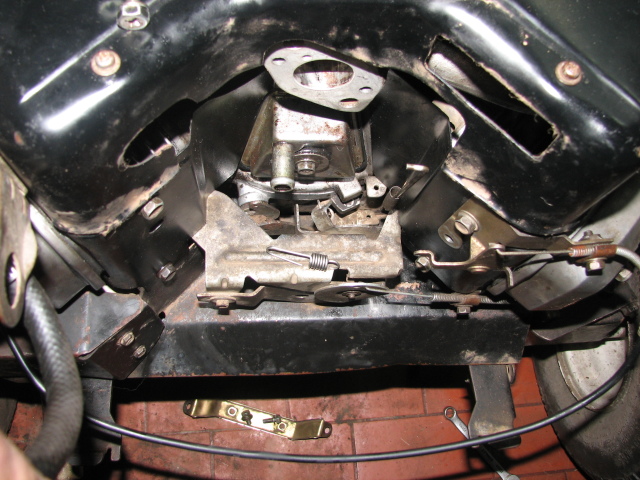

Front Hi Eric, again Juan from Buenos Aires, Argentina. I have an OHV Twin Cylinder (14 HP Briggs). I have a problem with a small spring..I don't remember where to install it. I think it´s the Spring-Governed Idle. I took a photograph..could you tell me - PLEASE- where it goes, with Paint you could mark anywere it goes in the picture I attach. I´ve already searched for manuals but it´s not clear were it goes.

MODEL:294777
TYPE: 0108-01
CODE: 89092611

Thank you very much

Juan

Answer
Below is a link from the factory service manual:

http://ww2.justanswer.com/uploads/mr2cycle/2010-08-16_004802_vangard.pdf

Looking at at older manual (1995 version) the governed idles spring connects to the bottom of the governa arm (near the governor arm pinch bolt) and then to a hole on the bracket assemble.  The hole on the bracket assembly is located near the governor arm pinch bolt.

Let me know if this helps.
Eric
